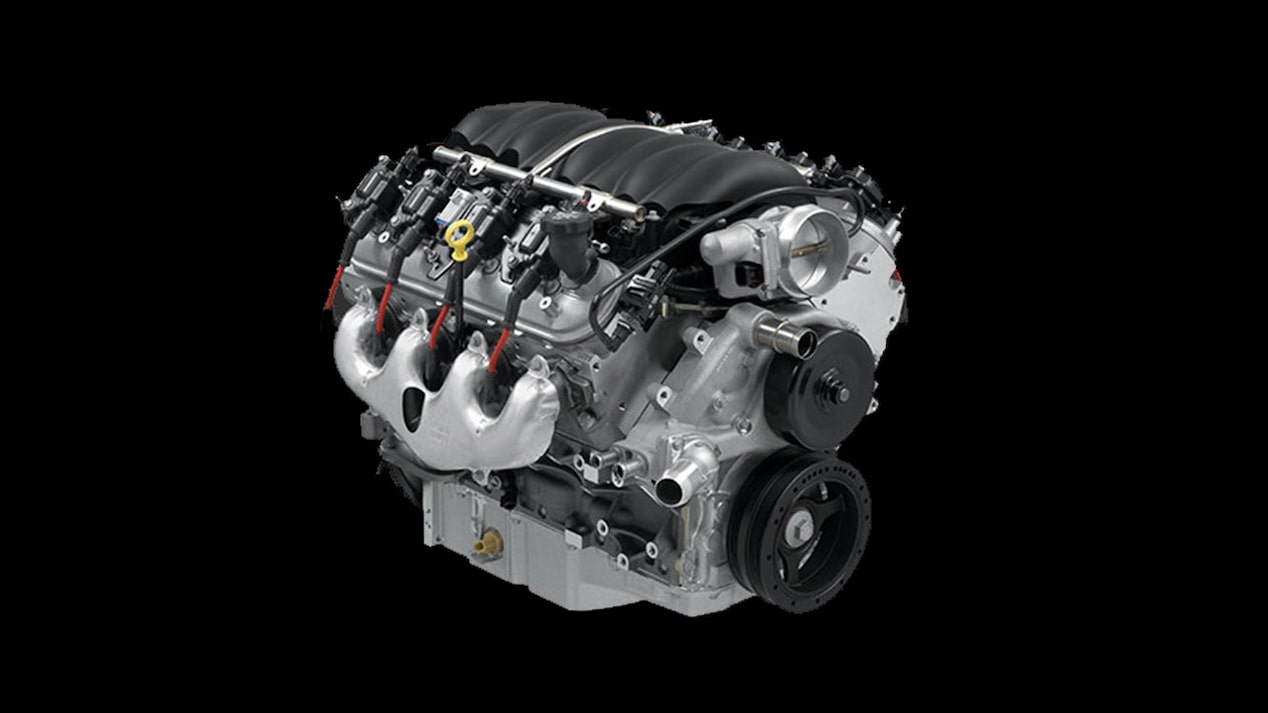

Fuel-injected ferocity
With Chevrolet Performance’s aggressive ASA camshaft installed in the LS3 6.2L engine, it comes alive with 525 uncompromising horsepower.
$19,157 MSRP†
PART NO. 19369338
Note: Video made for US audiences. Contact your Chevrolet Performance Stockist for more info
Take-No-Prisoner Performance
The ASA camshaft is a hydraulic roller with .525-inch lift on both sides, along with 226 degrees duration on the intake side and 236 degrees on the exhaust side. And for durability, we complement the cam with higher-rate valve springs.

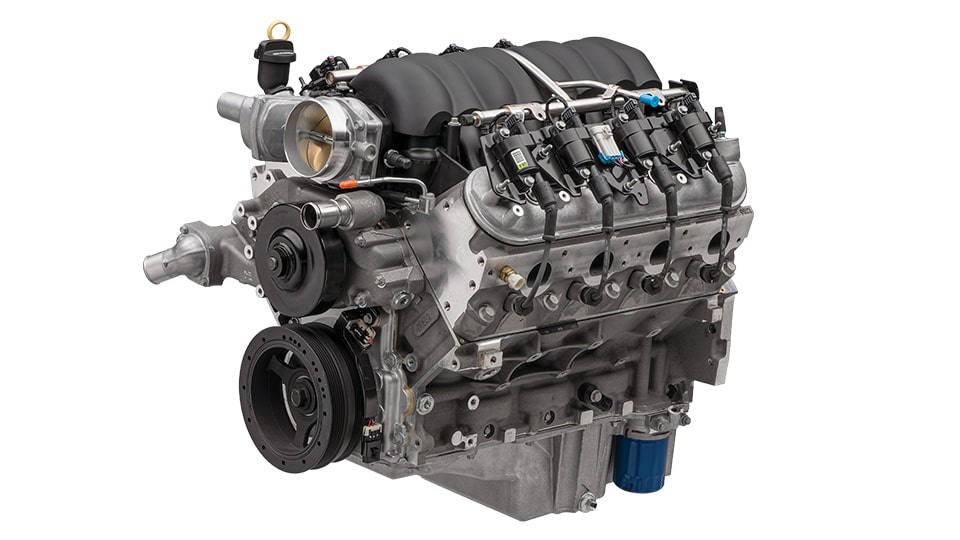

LS376-525 Tech Specs
- Part Number: 19369338
- Engine Type: LS-Series Gen-IV Small-Block V-8
- Displacement (cu. in.): 376 (6.2L)
- Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
- Block (P/N 12623967): Cast aluminum with six-bolt, cross-bolted main caps
- Crankshaft (P/N 12685659): Nodular iron
- Connecting Rods (P/N 12607475): Powdered metal
- Pistons (P/N 19207287): Hypereutectic aluminum
- Camshaft Type (P/N 88958770): Hydraulic roller
- Valve Lift (in.): 0.525 intake / 0.525 exhaust
- Camshaft Duration (@0.050 in.): 226° intake / 236° exhaust
- Cylinder Heads (P/N 12629063): Aluminum L92-style port; “as cast” with 68-cc chambers
- Valve Size (in.): 2.165 intake / 1.590 exhaust
- Compression ratio: 10.7:1
- Rocker Arms (P/N 12569167 int): Investment-cast, roll trunnion
- Rocker Arms (P/N 10214664 exh): Investment-cast, roll trunnion
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel: Premium pump
- Maximum Recommended rpm: 6600
- Reluctor Wheel: 58X
- Balanced: Internal
