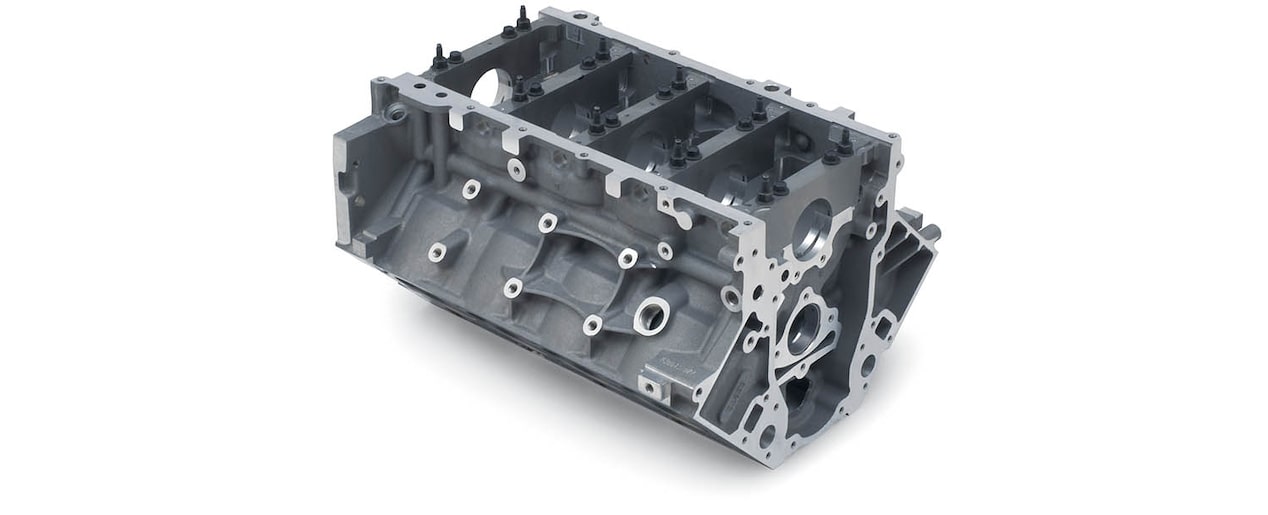

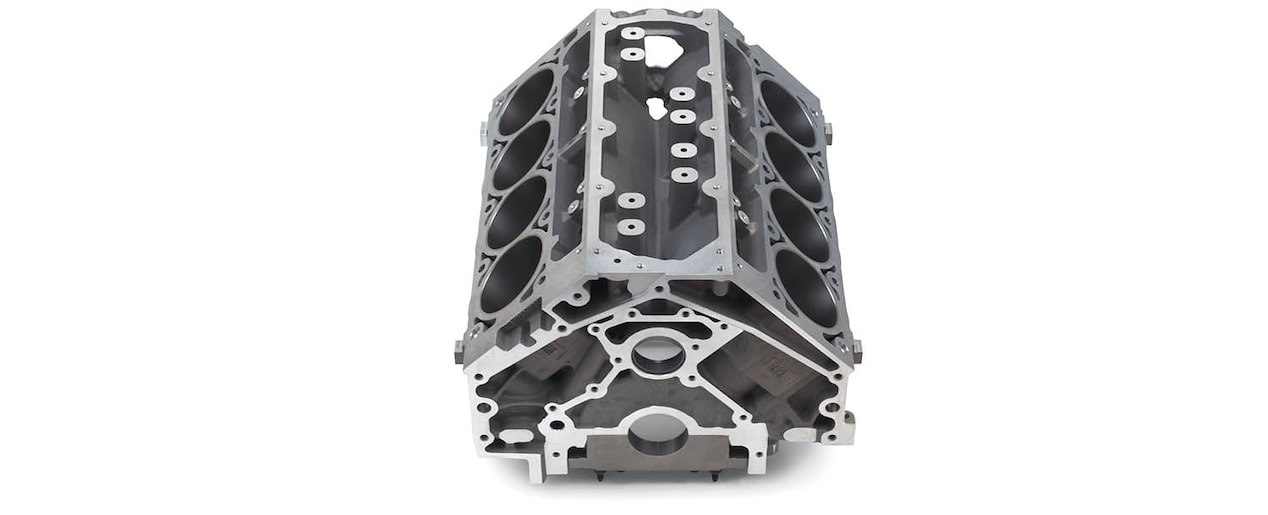

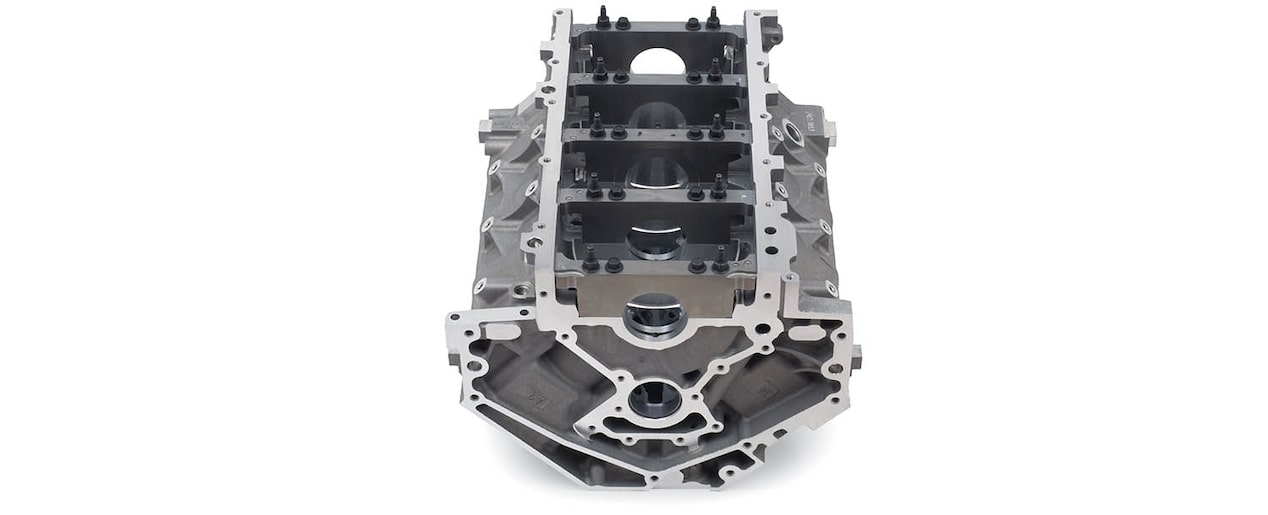

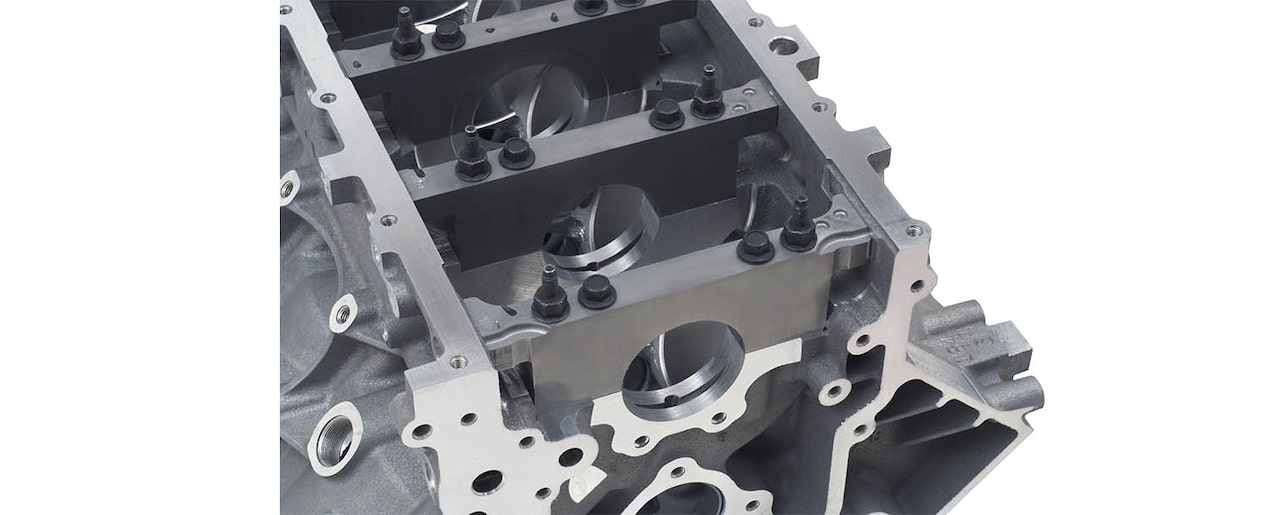

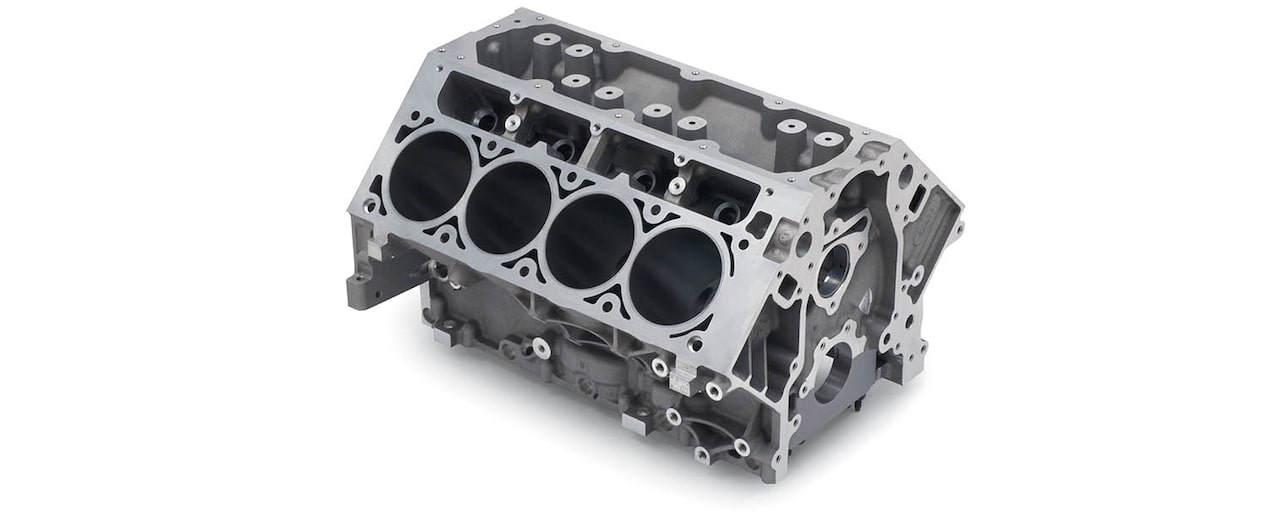

LS/LT/LSX PRODUCTION CYLINDER BLOCKS

12623967

LS3/L92 ALUMINUM 6.2L BARE BLOCK






Direct replacement for:
            2009-2012 L9H
            2010-2012 L94
            2008-2013 LS3
            2010-2013 L99
            2007-2008 L92
Production aluminum block with iron sleeves
Production oiling system

Use only LS1, LS6, LS2, or L92/LS3-style cylinder heads
4.065” finished bore (103.25 mm)
Provisions for Active Fuel Management
Great for stroker cranks for even more cubes
Tested to 500+ horsepower
Forged powdered metal 6-bolt main bearing caps
9.240” deck height

12673476

LSA 6.2L BARE BLOCK

Direct replacement for 2009-2012 Cadillac CTS-V 6.2L supercharged engine and 2012 ZL1 Camaro
Production cast-aluminum block with iron sleeves
Production oiling system
6-bolt iron main bearing caps
9.240” deck height

Not for use with LS7 or LSX-LS7 heads
4.065” finished bore (103.25mm)
Includes oil squirters (8) for piston cooling
No provision for Active Fuel Management
Rated for 550+ horsepower
