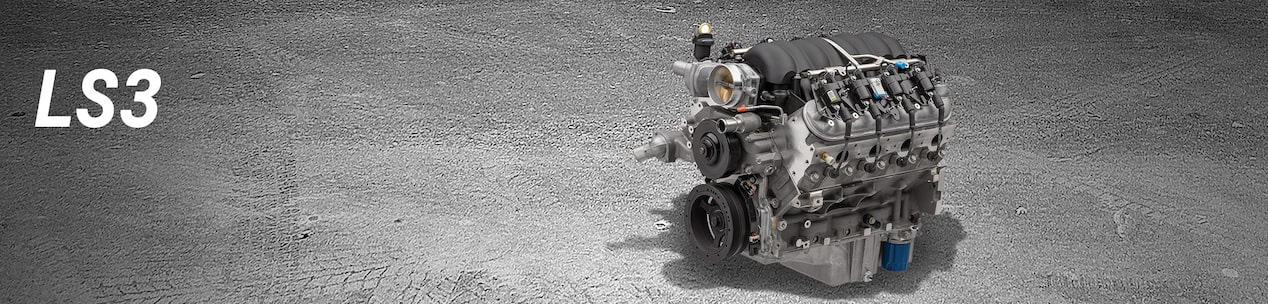

A new classic – The LS3
As the standard engine in the fifth-generation Camaro SS and C6 Corvette, the high-revving, deep-breathing LS3 6.2L is poised to go down in history as one of Chevrolet’s best and most versatile engines.
PART NO. 19369326

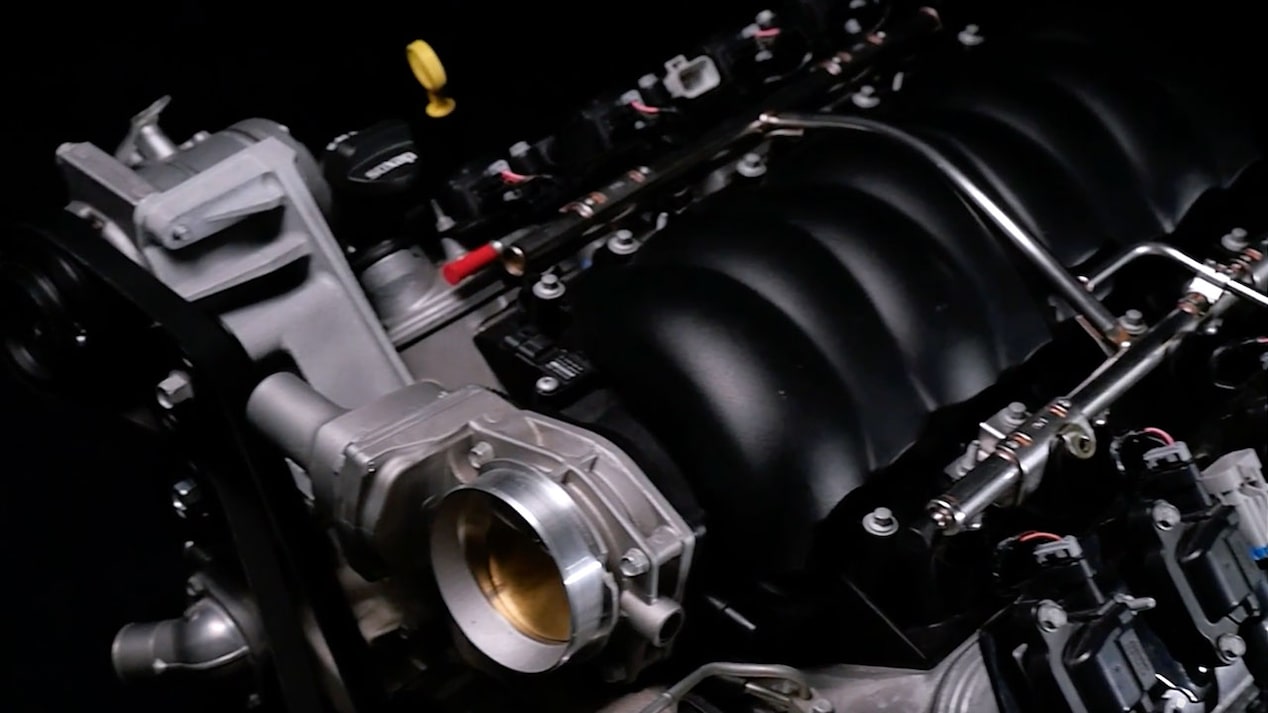

Note: Video made for US audiences. Contact your Chevrolet Performance Stockist for more info
Modern Muscle
The LS3 is filled with components designed for high performance and longevity. The aluminum block is filled with a sturdy reciprocating assembly that combines with L92-type rectangular-port heads to deliver a 10.7:1 compression ratio.

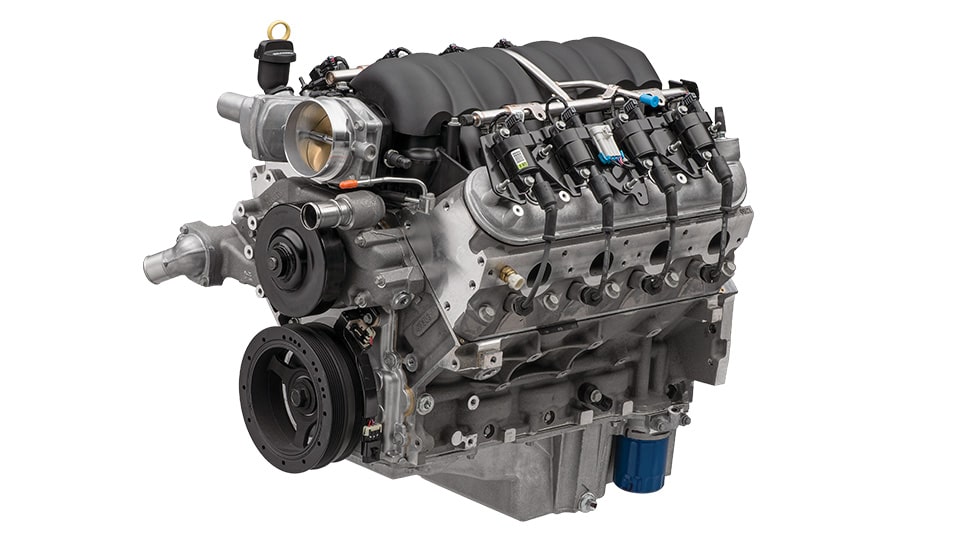

LS3 Tech Specs
- Part Number: 19369326
- Engine Type: LS-Series Gen-IV Small-Block V-8
- Displacement (cu. in.): 376 (6.2L)
- Bore x Stroke (in.): 4.065 x 3.622 (103.25 x 92 mm)
- Block (P/N 12623967): Cast-aluminum with six-bolt, cross-bolted main caps
- Crankshaft (P/N 12597569): Nodular iron
- Connecting Rods (P/N 12607475): Powdered metal
- Pistons (P/N 19207287): Hypereutectic aluminum
- Camshaft Type (P/N 12603844): Hydraulic roller
- Valve Lift (in.): .551 intake / .522 exhaust
- Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
- Cylinder Heads (P/N 12629063): Aluminum L92-style port; “as cast” with 68-cc chambers
- Valve Size (in.): 2.165 intake / 1.590 exhaust
- Compression Ratio: 10.7:1
- Rocker Arms (P/N 12569167 int): Investment-cast, roller trunnion
- Rocker Arms (P/N 10214664 exh): Investment-cast, roller trunnion
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel: Premium pump
- Maximum Recommended rpm: 6600
- Reluctor Wheel: 58X
- Balanced: Internal
